Michigan Loader Parts - A popular type of industrial equipment used in a variety of applications is the loader. This industrial machine is utilized for moving items and loading materials including snow, feed, woodchips, grain, dirt, demolition debris, asphalt, raw materials, sand and similar items. These machines facilitate a variety of transportation such as moving items into feed-hoppers, rail cars, conveyor belts and dump trucks. There are a variety of different loaders designed for numerous applications including scoop, skid-steer, front loader, shovel, payloader, front-end loader, skip loader, wheel-loader, and bucket loader.
Description
Loaders are a specific type of tractor outfitted with wheels or tracks with a wide, front-mounted bucket that is connected to the end of two booms or arms. This versatile piece of industrial equipment can scoop up items such as sand, gravel or dirt and transport it to another place without having to push it across the ground. Loaders move stockpiled items from ground level and transfer it to a dump truck or open trench. Removable or permanently mounted attachments make up the loader assembly. The bucket can be interchanged with other tools. Loaders can utilize mounted forks to transport pallets or shipping containers. The machine can also use a clamshell bucket that is hydraulically operated for scraper and light dozer applications. Large bales of hay or straw can be transported via a loader with a bale grappler attachment.
The term front loader is given to sizeable loaders that feature a front bucket. Smaller loader tractors can be outfitted with a tiny backhoe and are called JCBs, loader backhoes or backhoe loaders. These loader models are commonly used for loading trucks, digging, clearing debris and laying pipe. The loader is not as efficient as other models such as an excavator or a backhoe due to its’ inefficiency of being unable to dig past its’ wheel level. The capacity of loader buckets ranges from 0.5 to 36 cubic meters. Between a backhoe loader and front loader, the front loader model has more bucket capacity available.
Most loaders consist of wheels as opposed to tracks, although, track models are available. Construction sites commonly employ track models since rubber tires can be easily damaged from sharp nails and similarly sharp things. Wheels offer better speed and mobility and do not damage paved roads the way tracks do, but tracks offer more traction. Loaders are used to transport items and digging tools around construction site locations.
Front loaders are often used for snow removal from parking lots, sidewalks and other locations that are too narrow for heavy equipment. These machines are often utilized as a snowplow with the correct attachment or use a bucket or snow-basket to load snow into the compartment of a snow plow or dump truck.
There are special high-tip buckets available for lightweight materials including peat, woodchips and light gravel, making it easier to empty the bucket while lifted at full height. These machines have enjoyed greater popularity over the past twenty years in urban engineering applications and earthmoving works. A variety of loader sizes are on the market to handle numerous jobs.
Sizeable loaders do not have the same automotive steering features unlike regular tractors with a backhoe or front bucket. These loaders steer by way of a hydraulically actuated pivot point that is situated between the rear and front axles, known as articulated steering. This specialized design allows most of the weight to be carried by the machine due to the solid front axle. Greater maneuverability is offered with the articulated steering. The attachment and the front wheels rotate along the same axis, helping the operator steer the load in an arc once the machine is positioned. Once the machine is twisted to the side with a heavy load raised, there is a greater risk of turning over towards the wide side.

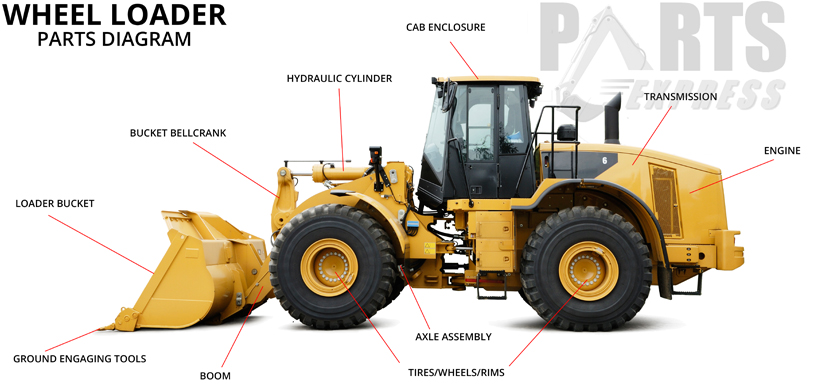

Major component items include the engine that is typically diesel, hydraulic items such as pumps, motors and valves along with transmission components including wheels, tracks, axles, motors, gearbox, pumps etc.
The loader engine controls the hydraulics and the transmission which bring movement to the front attachments such as forks, sweepers, buckets and the like. Each loader model has particular lifting capabilities and can conquer manure, sand, gravel or other items.
Wheel Loaders
The first wheel loader consisted of a tractor with a rear-wheel drive. Current wheel loaders feature front and rear wheels of the same dimensions and are articulated.
Armored Wheel Loaders
The armored CAT 966 wheel loaders are common in military applications and used to complete construction missions and combat engineering feats. These machines are often used to build bases, fortify buildings and remove roadblocks. Armor plating is added to protect the machine against gunfire, Molotov cocktails, stones and rocks. Certain elite police squads have relied on wheel loaders for military use to open routes and lead the way for police. Wheel loaders that utilize remote controls can be used by military and police departments.
Tractor Front Loaders
Tractor models that run with 50 to 200 horsepower can utilize a loader feature. Tractor loaders have been manufactured to complete many farming activities. They are highly versatile and lower in cost in comparison to Telehandler equipment. Tractor loaders can utilize a variety of attachments such as hydraulic grabs and spikes to facilitate bale handling and silage applications. Bucket attachments are often used for agricultural jobs and pallet transportation can be facilitated with fork attachments.
Compact Front End Loaders
FELs or front-end loaders are popular additions to farm tractors and compact utility tractors or CUTs. Landscaping and groundskeeping applications utilize smaller and more compact models with 18 to 50 HP. There are curved arm models, semi-curved and the traditional dogleg model design.
CUT size tractors featuring front-end loaders can complete numerous jobs, especially when outfitted with special attachments. For increased digging abilities, a tooth bar may be outfitted to the front edge of the machine. A quick coupler or quick attach system or QA enables attachments such as bale spears, pallet forks and buckets to be added or removed with ease.
A front-end loader known as an LHD or load-haul-dump unite is helpful in compact mining situations. It relies on many different buckets and operates with electric or diesel engines.
Skid Loaders
A small engine powered loader that has a rigid frame is called a skidsteer, skid loader or skid-steer loader. It has lift arms that can easily attach to a variety of tools. These machines are generally a four-wheeled vehicle that mechanically synchronizes on each side. The left side drive wheels are capable of being driven independently from the right side. The wheels typically maintain a fixed, straight alignment on the body without a separate steering option.
Differential steering accomplishes turning maneuvers. Each side of left and right wheel pairs operate at different speeds, allowing the machine to turn by skidding or dragging wheels of fixed-orientation over the ground. The rigid frame and strong wheels stop torsional forces from happening due to the dragging motion. It is easy for soft ground and fragile road surfaces to become destroyed by the immense ground friction caused by tracked vehicles and skid steers.
Low ground friction is converted by specially designed wheels. Certain skid-steer models can accomplish pirouette turning and are capable of zero-radius turns to allow maximum maneuverability. This machine is ideal for jobs that need agile and compact equipment. Some models use tracks in place of wheels and are called multi-terrain loaders.
In skid loaders, the lift arms are found beside the operator and have pivot points situated behind the driver’s shoulders. Being so close to moving boom caused operator safety concerns with the first models compared to conventional front loader models, particularly during entry and exit of the machine. Today’s modern models have completely enclosed cabs and additional features to keep the operator safe. These machines are similar to other front loader models and are capable of transporting items from one location to the next via the bucket for pushing items across the ground or loading them into a trailer.
History of Tracked Loaders
A tracked loader utilizes a chassis with a loader for digging items and loading materials. There have been three major design evolutions for this equipment, each time resulting in greater efficiency and versatility. This equipment can complete a variety of tasks, making it a useful addition to many fleets.
The first tracked loaders were created from track tractors; however, they offered less ability to dig into harder ground surfaces, making them similar to bulldozers during that time. Tracked loaders were used mainly for moving stockpiled materials into rail cars and loading trucks.
Hydraulic integration changed everything from increasing overall power to providing power to the loader linkages. The ability of the machine to offer bucket down pressure has been enabled thanks to the introduction of the hydraulic system, facilitating greater digging within compact locations. Initially, engine weight was situated on the front portion of the tracks together with other heavy loader equipment. This caused tons of heavy wear issues on the undercarriage and front idler wheels. The next big design success was the implementation of the hydrostatic drive system, greatly improving track loader efficiency.
Swingloaders
A swingloader is a machine that features a swinging boom and a rigid frame. The boom can travel 180 degrees or farther. This equipment is used mostly in railway applications for laying rail. Numerous attachments including forks, buckets and magnets can be implemented. Agricultural applications rely on smaller machines. Swingloaders are useful in limited space applications. This loader can lift and deposit on all sides.
